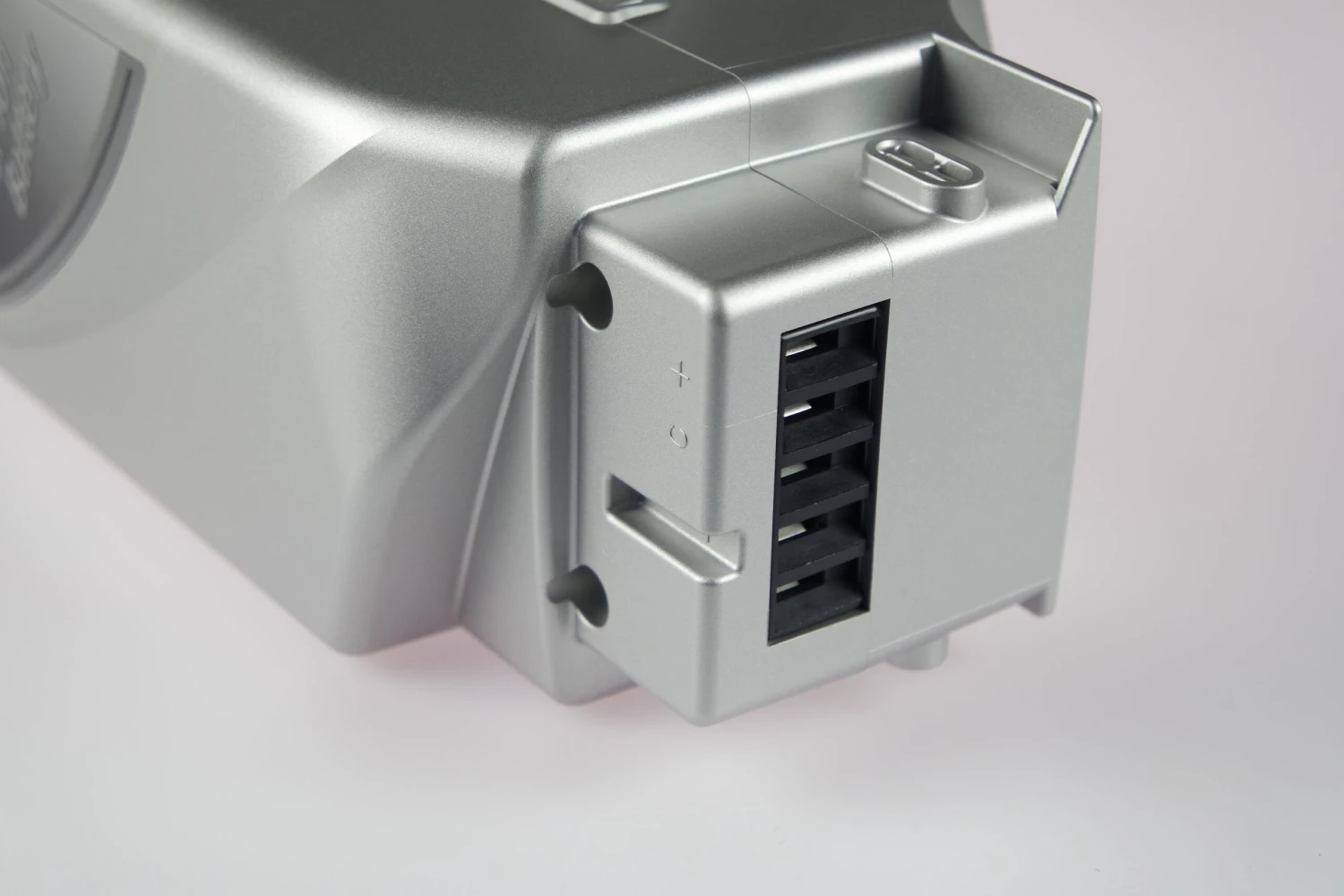

Battery Panasonic – Base 26 Volt 16 Ah

Electric bike & pedelec battery for the 26 Volt mid-motor systems from Panasonic. Ranges of over 100 km are no problem with the battery size of 16 Ah. The batteries are compatible with all 26V mid-motor systems from Panasonic from year of manufacture 2007, installed in the models of the following manufacturers:

• Flyer
• Kalkhoff
• Raleigh
• KTM
• Kettler
• Victoria
• Rixe
• etc.

Note on the installation of a 16Ah battery:

Since the 16Ah battery discharges about 155mm wide, you need to consider the space between the battery and the back of the pedal crank.
Electric bikes with 26-volt Panasonic drive and smaller battery versions in the years 2007 to 2012 were often delivered with narrow cranks, which could drag on the housing of the much wider 16Ah battery.

Please measure in any case the distance between your (26Volt 10Ah or 12Ah) battery and the pedal crank, whether there is a gap of at least 2cm or better 3 cm.

If you have any questions or uncertainty about compatibility, please contact us by email. We will help you quickly, or call you back immediately.

Note on battery mounting:
To use the 16Ah battery on a Flyer electric bike, many manufacturers recommend converting the „standard battery mount“ to a „poly-carbonate mount“ (raised „PC“ inscription).
Compatibility with all other 26-volt batteries (8, 10, 12Ah) is maintained with the new intake.

We supply only current items, they are not stock items.

Specifications

Battery capacity:	400 Wh – 499 Wh
Drive system:	Panasonic drive
Manufacturer:	Panasonic
Panasonic System:	Panasonic Motor central Premium 26 V
Weight:	12 Ah = 2.65 kg<br>16 Ah = 3.6 kg
Item:	Original Panasonic Rechargeable Batteries – Lithium Ions for Electric Bikes & E-Bikes
Scope of delivery:	12 Ah – Akku<br>16 Ah – Akku
Manufacturer:	Panasonic
Colour:	silver
Measurements:	12 Ah = 11,5 x 10,5 x 27,5 cm<br>16 Ah = 15,3 x 10,5 x 27,5 cm
Charging cycles:	12 and 16 Ah = 1200 charging cycles
Range:	12 Ah = approx. 60-70 km<br>16 Ah = approx. 90-100 km
Compatibility:	12 Ah: Panasonic Premium from 2006<br>16 Ah: with most Flyer Panasonic Premium models from 2006 onwards, replacement battery holder required
Type:	12 Ah = NKY314B2<br> 16 Ah = NKY374B2
